Frame and build

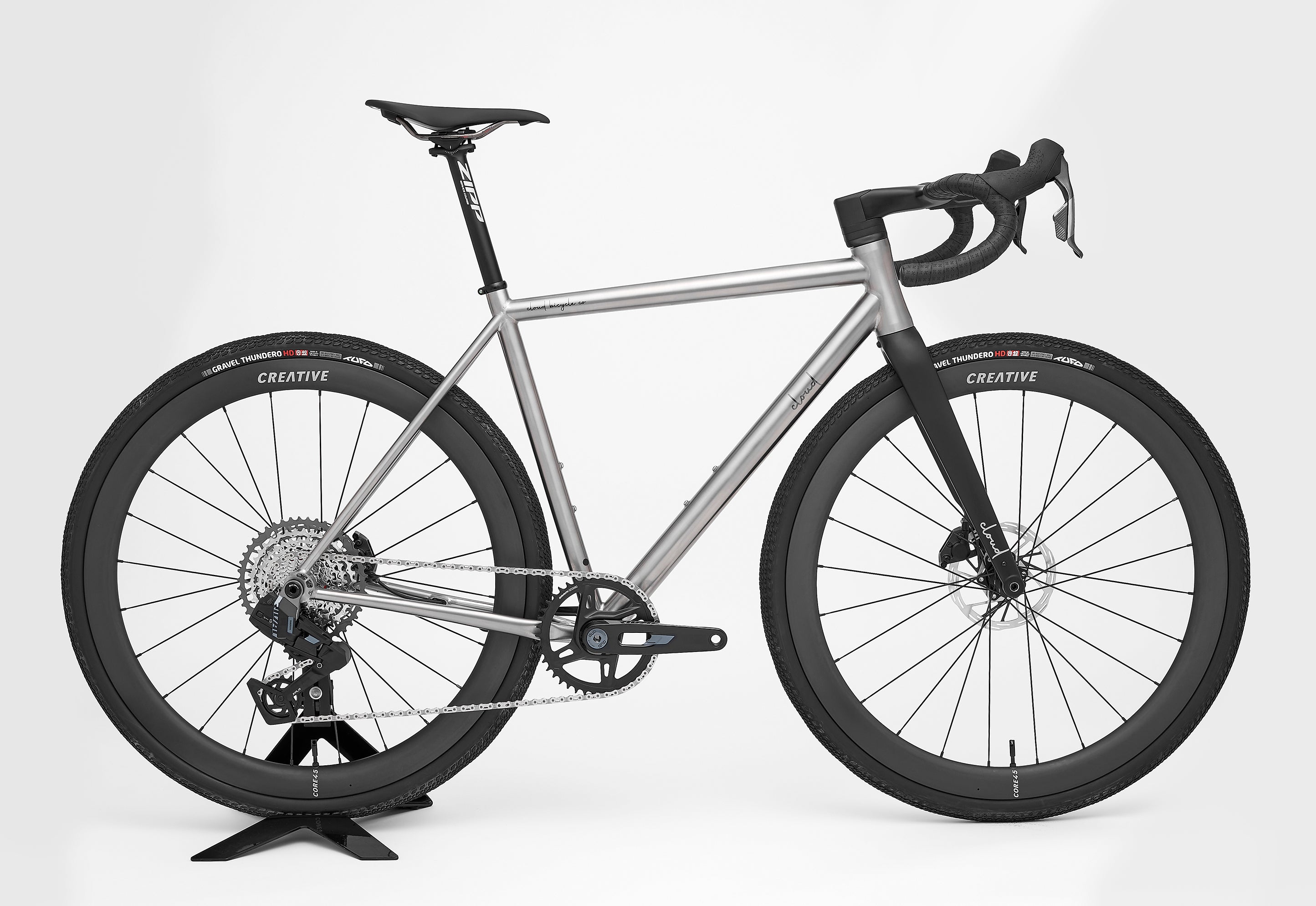

Full spec · AR All Road, SRAM Rival XPLR AXS
- Weight
- 8.5kg
- Frame
- AR All Road | Endurance Titanium Frameset and Fork

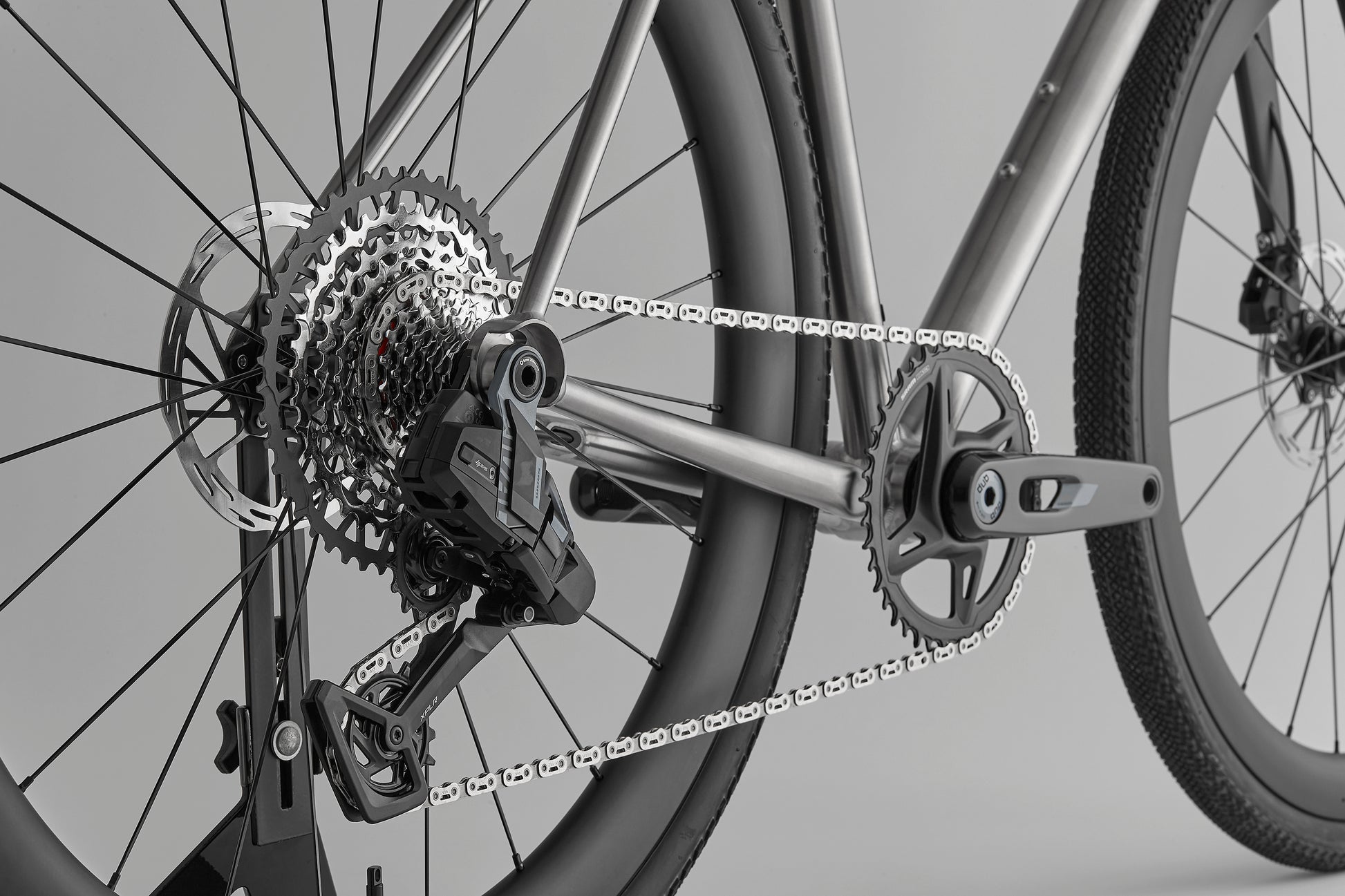

- Drivetrain
- SRAM Rival XPLR E1 AXS groupset
- Shifters and brakes
- SRAM Rival E1 AXS shifters and calipers
- Cassette
- SRAM Rival XPLR Cassette 10-46
- Crankset
- SRAM Rival XPLR E1 Crankset 42t
- Cockpit
- Creative Carbon Integrated Aero Barstem
- Wheelset
- Creative Carbon Core 45 Disc Wheelset
- Seatpost
- Zipp Service Course Seatpost
- Bottom bracket
- Aita Ceramic T47 Bottom Bracket
- Bar tape
- Burgh Domestique Bar Tape
- Saddle
- Selle Repente Quasar 2.0 Saddle
- Tyres
- Tufo Gravel Thundero 40mm tubeless-ready tyres
- Bottle cages
- Cloud titanium bottle cages
- Sizes
- XS, S, M, L, XL
- Crank length options
- 160mm, 165mm, 170mm, 172.5mm
- Chainring options
- 42t standard, or 40t, 44t or 46t
- Tyre width options
- 40mm or 44mm





All Road geometry, every size
Measured on size M, in millimetres. The table gives every size. Crank length is chosen when you order, and the workshop confirms both with you before the build.
Reach 382
Stack 550Seat angle 74°Head angle 71.5°BB drop 73Chainstay 425Wheelbase 1,014
| A | Reach | 382 |
|---|---|---|
| B | Stack | 550 |
| C | Seat tube angle | 74° |
| D | Head tube angle | 71.5° |
| E | Bottom bracket drop | 73 |
| F | Chainstay | 425 |
| G | Wheelbase | 1,014 |
Stem length, mm
- XS
- 80
- S
- 90
- M
- 100
- L
- 110
- XL
- 120
Bar width, mm
- XS
- 360
- S
- 380
- M
- 400
- L
- 400
- XL
- 400
Spacers under the stem, mm
- XS
- 5
- S
- 5
- M
- 5
- L
- 5
- XL
- 5
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Reach | 356 | 369 | 382 | 390 | 402 |
| Stack | 515 | 525 | 550 | 575 | 602 |
| Seat tube | 430 | 455 | 500 | 520 | 550 |
| Top tube, effective | 489 | 510 | 540 | 560 | 580 |
| Head tube | 102 | 111 | 135 | 161 | 188 |
| Seat tube angle | 75.5° | 75° | 74° | 73.5° | 73.5° |
| Head tube angle | 70.5° | 71° | 71.5° | 71.5° | 72° |
| Bottom bracket drop | 73 | 73 | 73 | 73 | 73 |
| Chainstay | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 985 | 997 | 1014 | 1030 | 1046 |
| Fork offset | 51 | 51 | 51 | 51 | 51 |
| Fork crown to axle | 385 | 385 | 385 | 385 | 385 |
| Front centre | 571 | 583 | 600 | 616 | 632 |
| Standover, 40mm tyre | 701 | 719 | 754 | 774 | 802 |
| Trail, 40mm tyre | 69 | 66 | 62 | 62 | 59 |
| Trail, 32mm tyre | 66 | 63 | 60 | 60 | 57 |
| Stem length, mm | 80 | 90 | 100 | 110 | 120 |
| Bar width, mm | 360 | 380 | 400 | 400 | 400 |
| Spacers under the stem, mm | 5 | 5 | 5 | 5 | 5 |
Care and warranty
- Warranty
- Limited lifetime on the titanium frame
- Shipping
- Insured, Australia wide
- Assembled in
- Melbourne, Victoria
Titanium does not rust or need paint. Wash it, check the bolts at the intervals in the owner card, and bring it back to the workshop for its first service.
Components
| Photograph | Component | Weight |
|---|---|---|
![]() |
FrameCloud All Road titanium frame | 1,690gFork 440g |
![]() |
CockpitCreative Carbon integrated aero barstem | 330g100 by 400 |
![]() |
WheelsetCreative Carbon Core 45 disc wheelset | 1,485gPair |
![]() |
TyresTufo Gravel Thundero, 40mm | 430gPer tyre |
![]() |
Bottom bracketAITA ceramic T47 bottom bracket | 87g |
![]() |
SeatpostZipp Service Course seatpost | 251g |
![]() |
SaddleSelle Repente Quasar 2.0 saddle | 170gSteel rails |
![]() |
Bar tapeBurgh Domestique bar tape | 112gBoth rolls |
![]() |
Bottle cagesCloud titanium bottle cages |
