Frame and build

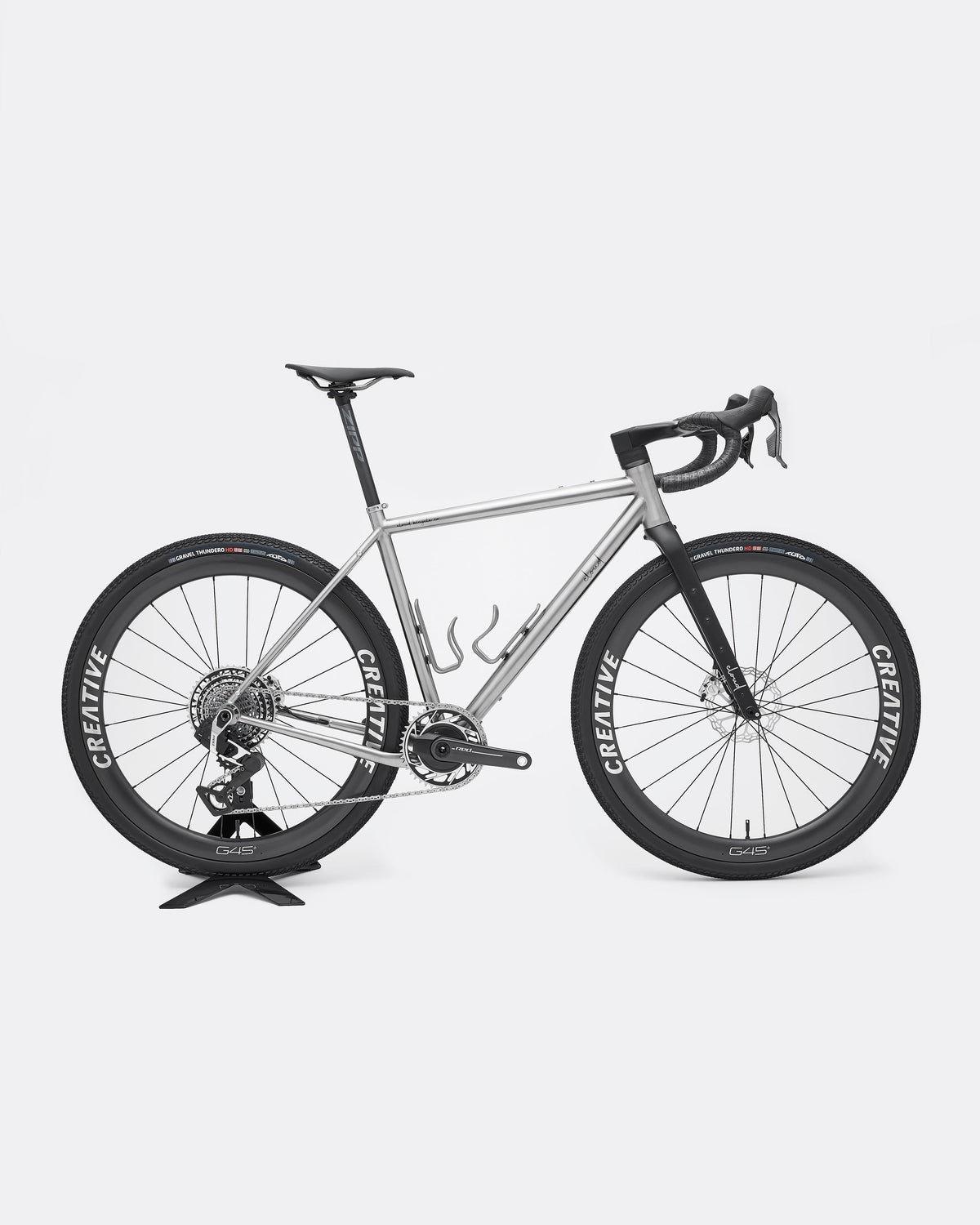

Full spec · GR Gravel, SRAM Red XPLR AXS

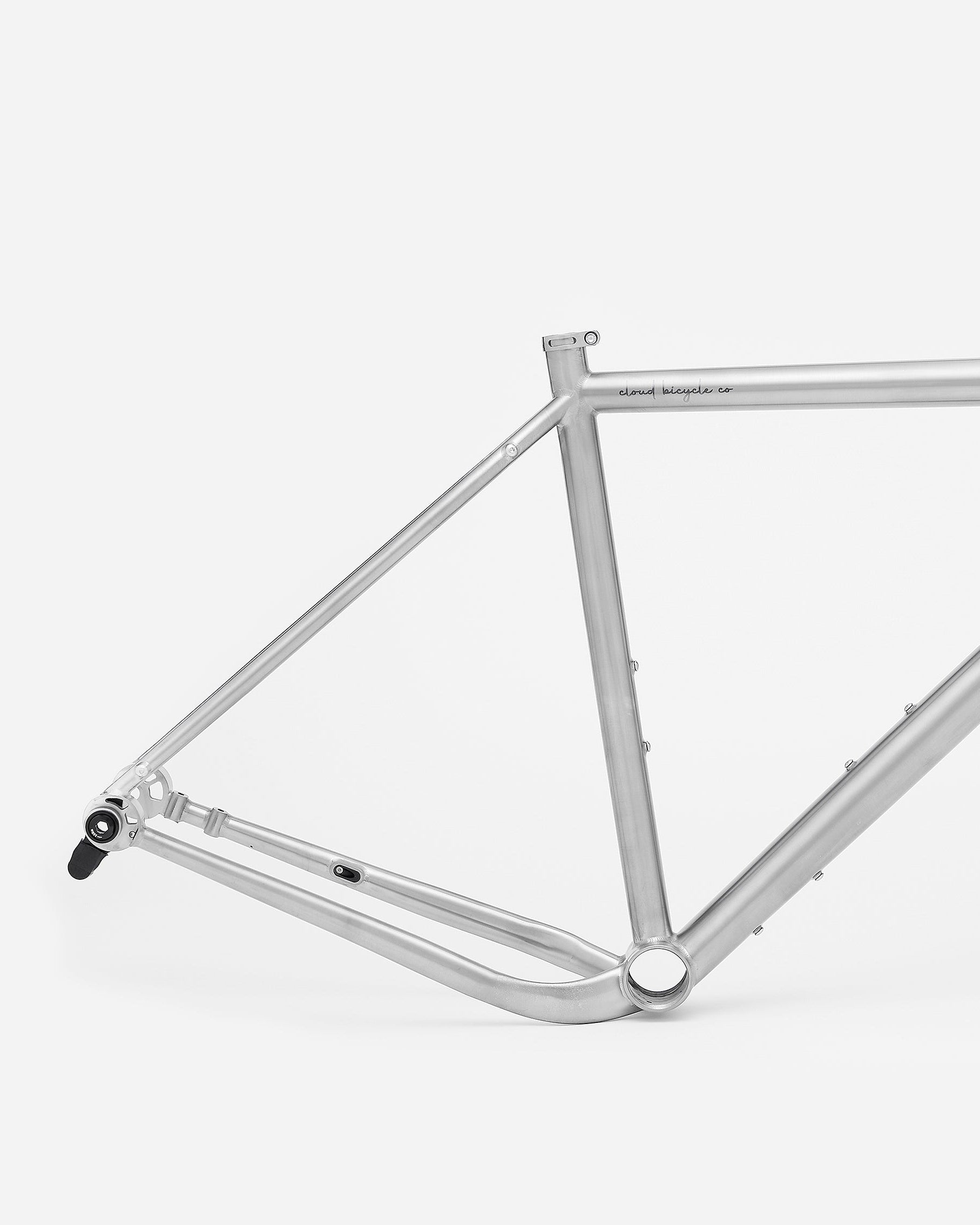

- Frame
- GR Gravel | Adventure Titanium Frameset and Fork

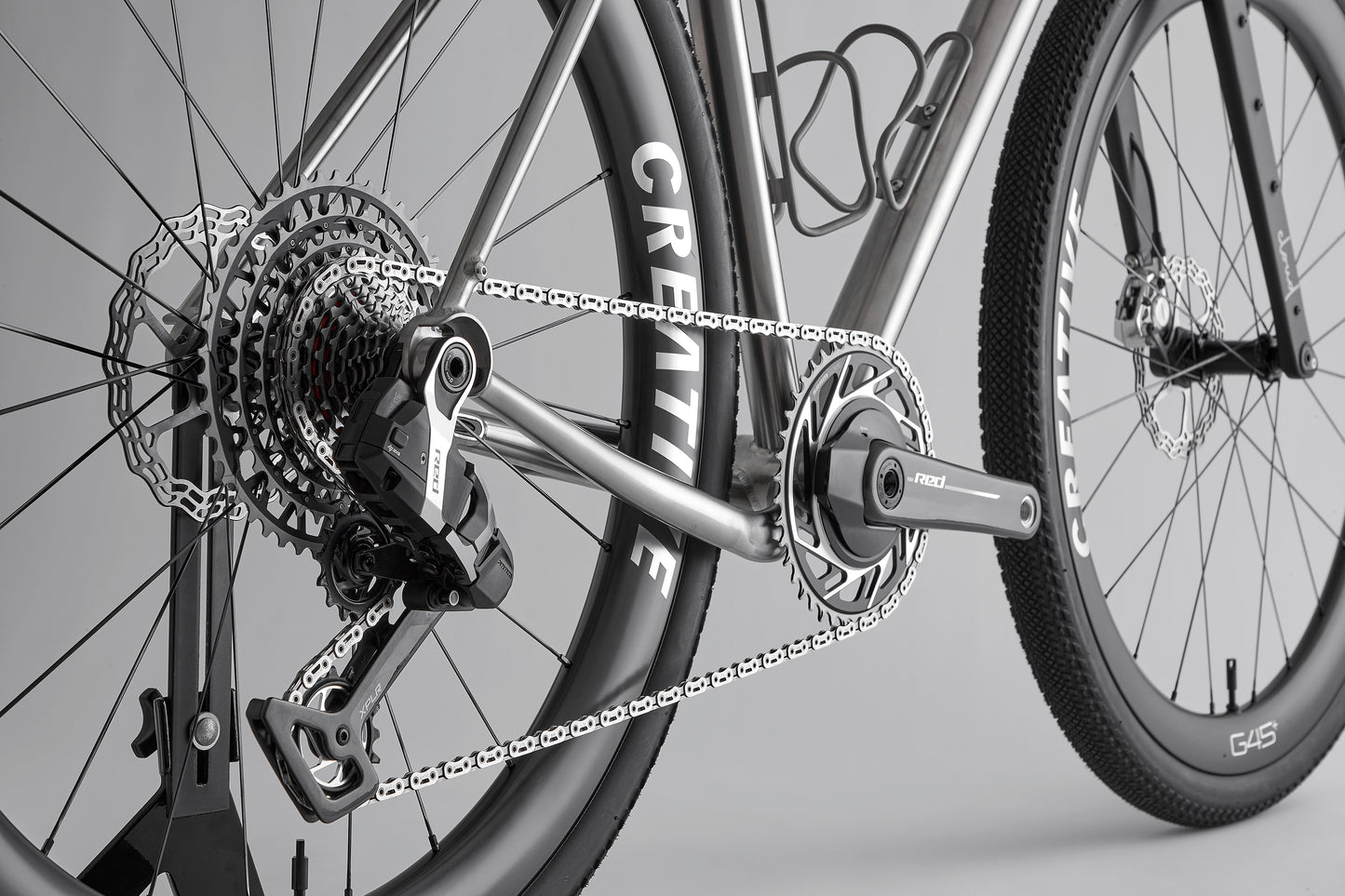

- Drivetrain
- SRAM Red XPLR E1 AXS groupset
- Shifters and brakes
- SRAM Red E1 AXS shifters and calipers

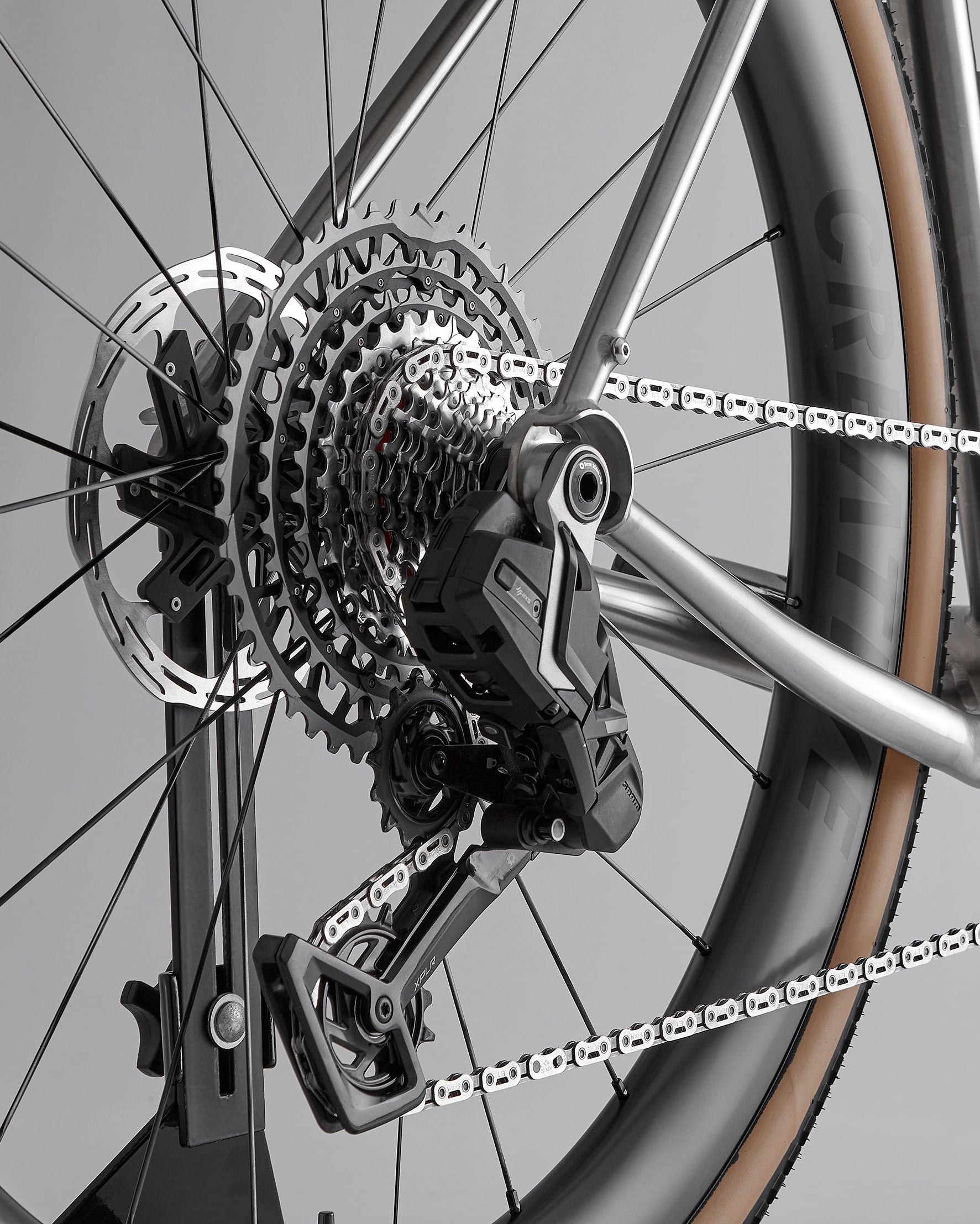

- Cassette
- SRAM Red XPLR Cassette 10-46
- Crankset
- SRAM Red XPLR E1 Crankset 42t
- Power meter
- SRAM Red XPLR AXS E1 Power Meter

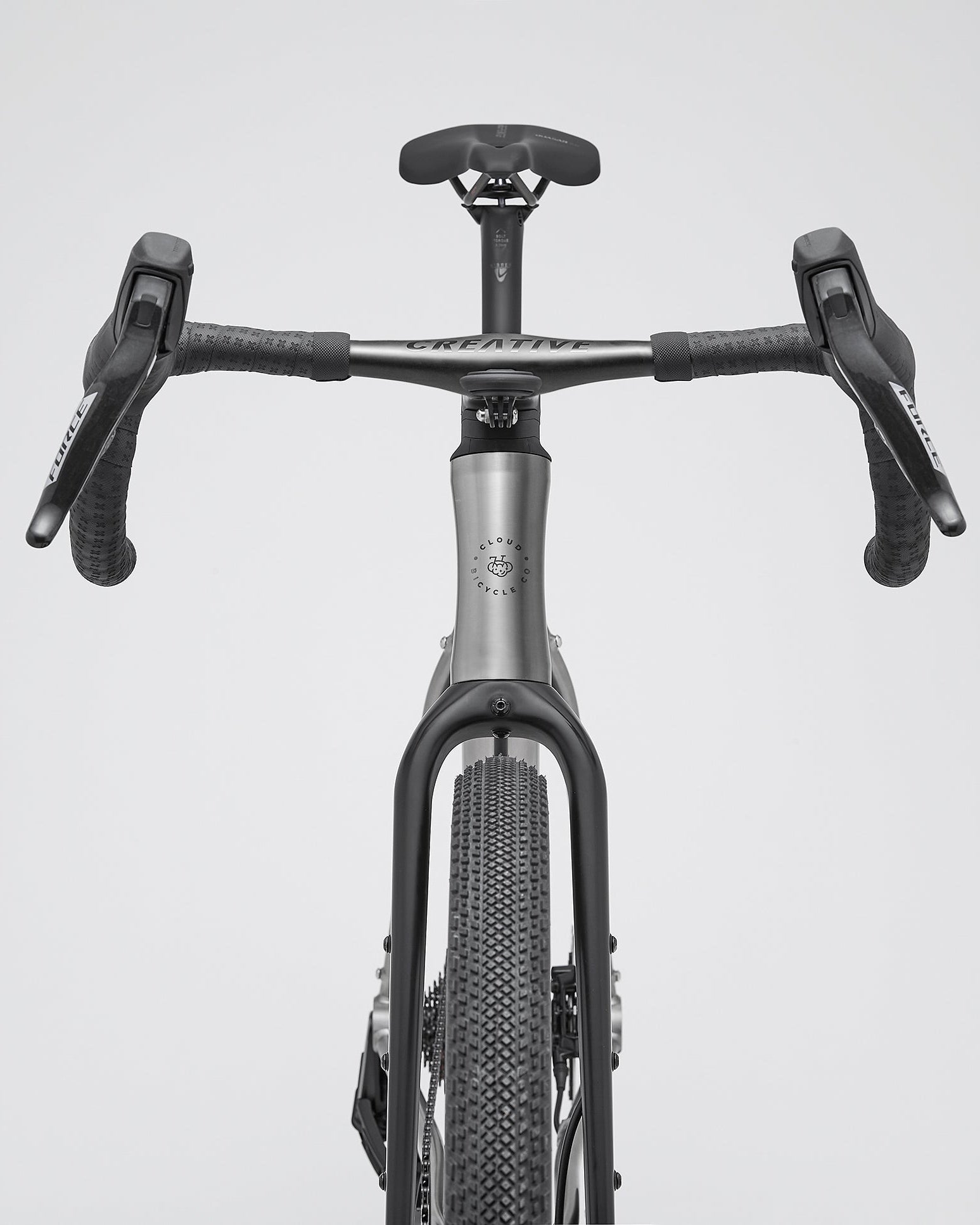

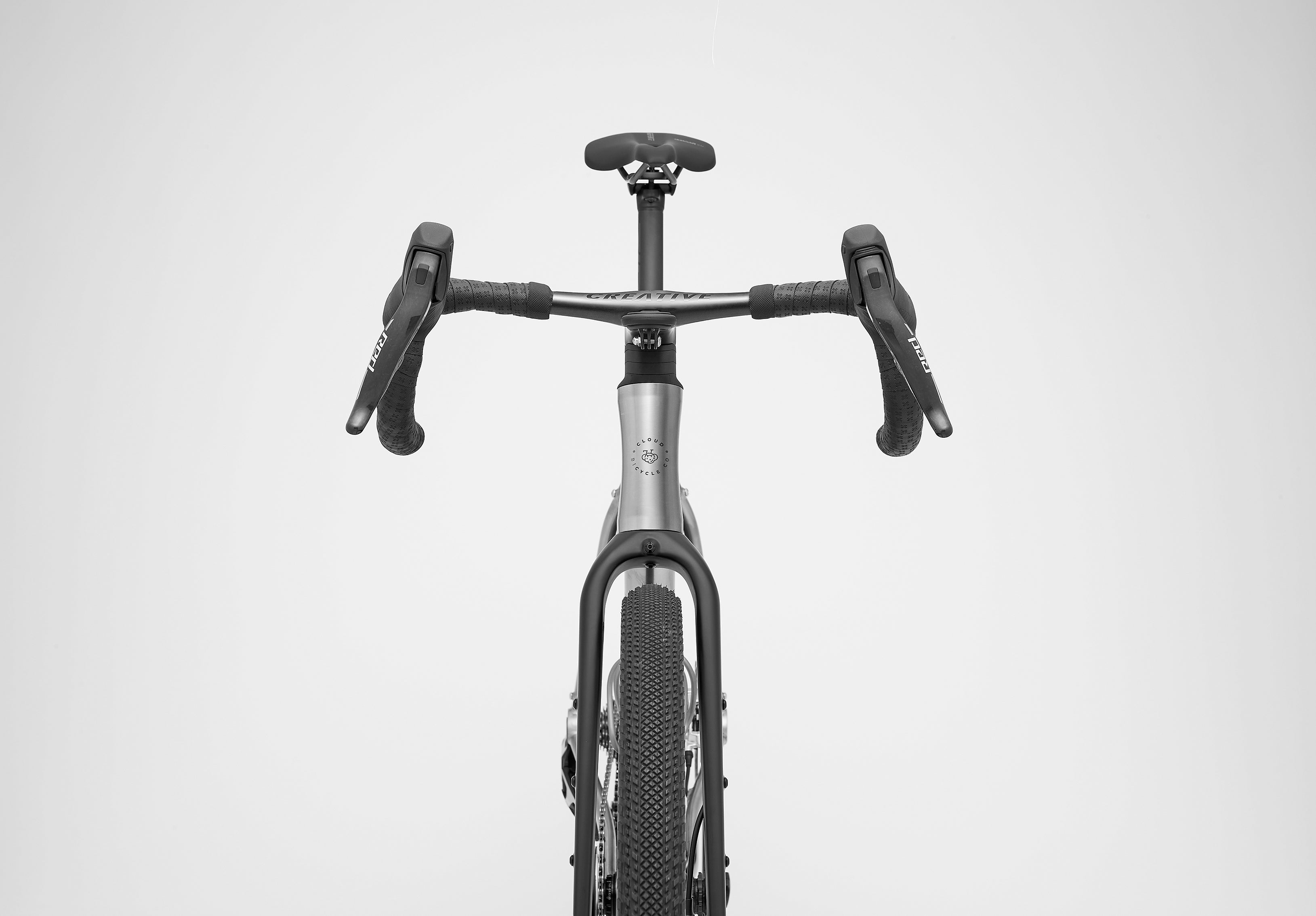

- Cockpit
- Creative Carbon Integrated Aero Barstem

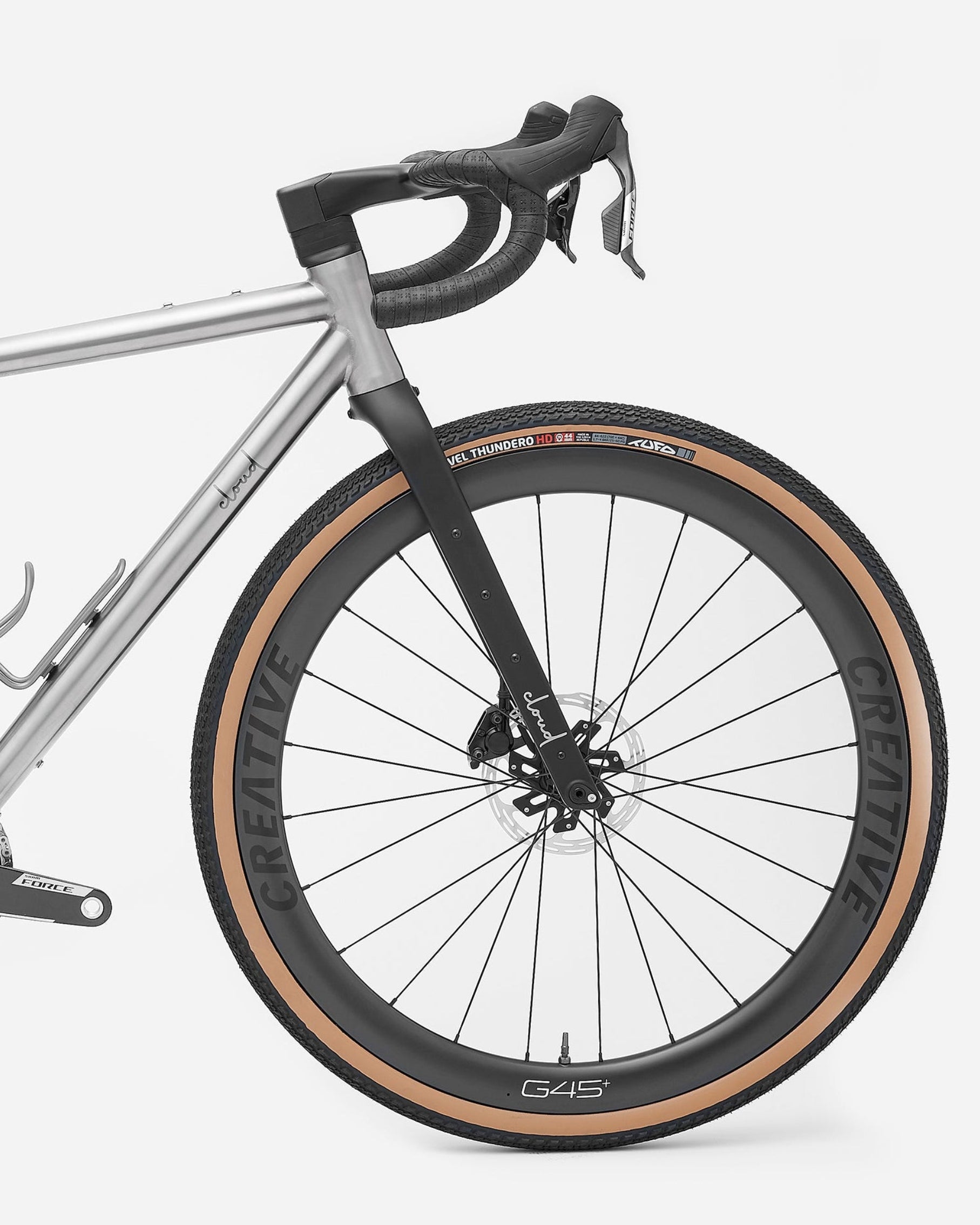

- Wheelset
- Creative Carbon G45+ Team Edition Disc-Brake Wheelset
- Seatpost
- Zipp Service Course SL Carbon Seatpost
- Bottom bracket
- Aita Ceramic T47 BB
- Bar tape
- Burgh Domestique Bar Tape
- Saddle
- Selle Repente Quasar 2.0 Saddle
- Tyres
- Tufo Gravel Thundero 44mm tubeless-ready tyres
- Bottle cages
- Cloud titanium bottle cages
- Sizes
- S, M, L, XL
- Crank length options
- 160mm, 165mm, 167.5mm, 170mm, 172.5mm
- Chainring options
- 42t standard, 38t, 40t, 44t, or 46t
- Tyre width options
- 40mm, 44mm or 48mm







Gravel geometry, every size
Measured on size M, in millimetres. The table gives every size. Crank length is chosen when you order, and the workshop confirms both with you before the build.
Reach 390
Stack 560Seat angle 74°Head angle 71°BB drop 73Chainstay 435Wheelbase 1,045
| A | Reach | 390 |
|---|---|---|
| B | Stack | 560 |
| C | Seat tube angle | 74° |
| D | Head tube angle | 71° |
| E | Bottom bracket drop | 73 |
| F | Chainstay | 435 |
| G | Wheelbase | 1,045 |
Stem length, mm
- S
- 80
- M
- 90
- L
- 100
- XL
- 100
Bar width, mm
- S
- 400
- M
- 420
- L
- 420
- XL
- 420
Spacers under the stem, mm
- S
- 5
- M
- 5
- L
- 5
- XL
- 5
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Reach | 385 | 390 | 400 | 410 |
| Stack | 545 | 560 | 592 | 620 |
| Seat tube | 460 | 500 | 520 | 550 |
| Top tube, effective | 531 | 551 | 575 | 600 |
| Head tube | 110 | 124 | 156 | 183 |
| Seat tube angle | 75° | 74° | 73.5° | 73.5° |
| Head tube angle | 70.5° | 71° | 71.5° | 72° |
| Bottom bracket drop | 73 | 73 | 73 | 73 |
| Chainstay | 435 | 435 | 435 | 435 |
| Wheelbase | 1039 | 1045 | 1061 | 1074 |
| Fork offset | 55 | 55 | 55 | 55 |
| Fork crown to axle | 410 | 410 | 410 | 410 |
| Front centre | 615 | 620 | 636 | 650 |
| Trail, 48mm tyre | 71 | 68 | 64 | 61 |
| Trail, 55mm tyre | 73 | 70 | 66 | 63 |
| Stem length, mm | 80 | 90 | 100 | 100 |
| Bar width, mm | 400 | 420 | 420 | 420 |
| Spacers under the stem, mm | 5 | 5 | 5 | 5 |
Care and warranty
- Warranty
- Limited lifetime on the titanium frame
- Shipping
- Insured, Australia wide
- Assembled in
- Melbourne, Victoria
Titanium does not rust or need paint. Wash it, check the bolts at the intervals in the owner card, and bring it back to the workshop for its first service.
Components
| Photograph | Component | Weight |
|---|---|---|
![]() |
FrameCloud Gravel and Adventure titanium frame | 1,790gFork 465g |
![]() |
CockpitCreative Carbon integrated aero barstem | 330g100 by 400 |
![]() |
WheelsetCreative Carbon G45+ Team Edition wheelset | 1,325gPair |
![]() |
TyresTufo Gravel Thundero, 44mm | 450gPer tyre |
![]() |
Bottom bracketAITA ceramic T47 bottom bracket | 87g |
![]() |
SeatpostZipp Service Course SL carbon seatpost | 233g |
![]() |
SaddleSelle Repente Quasar 2.0 saddle | 170gSteel rails |
![]() |
Bar tapeBurgh Domestique bar tape | 112gBoth rolls |
![]() |
Bottle cagesCloud titanium bottle cages |
